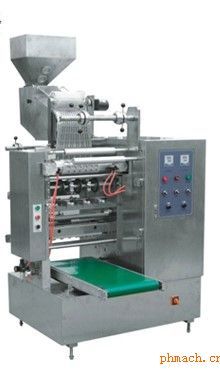

       产品特点

● 体积小、结构紧凑、机械布局合理，生产效率高。

● 整机 PLC 自动控制，变频无级调速，性能可靠，操作方便。

● 封合、打批号、断裂线、切断、上料等执行机构，调整方便，安全可靠。

● 主要器件和关键件采用国外*配套，保证工作平稳可靠。

● 符合 GMP 要求。

● 整机采用全封闭式结构设计，与药品接触的材料均采用符合 GMP 要求的材料，上料部件拆装方便，易于清洗。

 适用范围

主要适用于医药行业，可对片剂、胶囊等药品进行单片或双片的双铝遮光包装。

Characteristic of the products :

1 The volume small, the structure compactness , machinery are rationally distributed, production efficiency is high

2 Complete machine PLC is automaticallied control, the stepless speed regulation of frequency conversion, performance is reliable , easy to operate

3 Seal and shut , type such executive bodies as lot number , fracture line , cutting off , material loading ,etc., it is convenient to change, it is safe and reliable.

4 Main device and key one adopt the foreign famous brand to form a complete set , guarantee that it is reliable to work steadily.

5 Accord with GMP demand .

6 The complete machine adopts all closed structural design, the material that is exposed to with the medicines adopts the material which accords with GMP demand , the material loading part is convenient in disassembly and assembly, easy to wash.

Scope of application:

It is suitable for medical trade mainly, can go on single block or a pair of aluminium of each hide the smooth packaging to tablet , capsule medicines

Main technology joining : The most pack efficiency 1000 slice/cent Wrappings It is apt to tear the membraneSupreme croscut times 60 times/cent The total power 3.5kw The largest pack width 320mm The electrical source 380v 50Hz

Dispose specially :

●Control method: Control ordinarily , the man-machine interface is controlled.

●Mark automatically correctly: The photoelectricity follows and measures and prints the punctuation mark, guarantee to print the pattern to adjust two-sidedly well.

●Users can select for use disposing specially according to the need while ordering

。技术参数：

冲切次数：20-50次/分

包装效率：400-1000/粒

包装材料：塑铝塑复合膜、纸塑复合膜

包装材料宽度：200-380mm

总功率：6KW

电源：380V/50Hz

外形尺寸：（长×宽×高）1100×850×1230mm

整机重量：1050kg
