主要用途

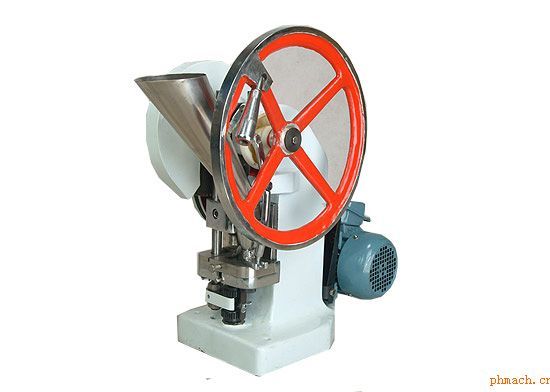

T-AⅡ型手电两用单冲压片机是为适应各级医院和药厂以及化工、科研单位将颗粒原料压制成片剂的需要而生产的。
Main Application
T-A Ⅱ manual and electric Single Tablet Press is produced to adapt the demand of all levels hospital, medicine factories, chemical and scientific research to press the granular materials into tablets.
特点
本机结构简单，操作方便，体积小，重量轻，便于装卸和搬运。无电源时也可用手摇压片。为了适应压制中草药剂的新要求，本机较我公司原生产的TDP型单冲压片机提高了机械强度，加大传动率，提高压片压力，同时也增大了充填深度，扩大了压片的规格范围。
Characteristics
The machine structure is simple, and it is convenient to operate, and small volume, weight light, convenient remounted and carried. It can press tablets by manpower. To adapt to press Chinese herbal medicine, it compares with the former TDP Single Tablet Press of our company, it improves   mechanical intensity, increases driving efficiency, advances pressure, augment depth of filling and enlarge the confines of specification.
技术参数  Technical Specifications
型号 Model T-AⅡ
*大压片力 Max. Pressure (kN) 60
*大压片直径 Max. Dia. Of Tablet (mm) 24
*大充填深度 Max. Depth Of Fill  (mm) 20
压片产量 Max. Production Capacity ( tablets/hour) 5500
电机功率 Motor (W) 550
转速 Speed (r/min) 1350
重量 Net Weight (kg) 100
外形尺寸 Overall Size (mm) 680×440×630
