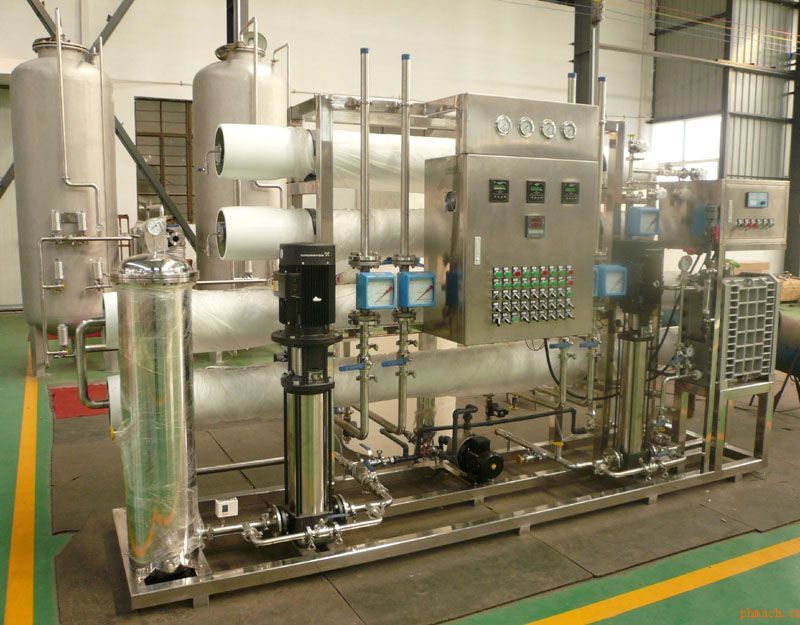

TIANDING生产的CS系列纯化水系统，采用反渗透（RO）与连续电子脱盐装置（CDI）的工艺进行纯水制取。

工艺技术先进，布置合理，结构紧凑，操作简便，制备纯水质量符合药典《纯水》要求：

CS water purification system series produced by TIANDING adopts RO and CDI for purifying process. With advanced techniques, reasonable collocation, compact construction and convenient operation, the quality of the produced pure water conforms to Pharmacopoeia requirements

系统主要部件及功能Major components and functions：

²        原水预处理装置                  质悬浮颗粒除氯达到RO进水指标；

²        精密过滤器                      去除5微米以上的悬浮颗粒；

²        反渗透装置（RO）                去除大部分盐TOC内毒素硅化物等；

²        连续电子脱盐装置(CDI)           深度去除残留盐离子硅化物CO2等;

²        系统灭菌装置(UV)                系统杀菌；

²        集成化控制系统和监测系统        全自动运行在线监控。

Source water pretreatment device

-- Dechlorination of suspended particles conforms to RO feeding water standard

Ultrafilter

--Remove suspended particles over 5 um

Reverse Osmosis System

--Remove most salt, TOC, endotoxins and silicides, etc.

CDI

--Profoundly remove residual salt ions, silicides and CO2, etc.

UV Sterilizer

--Ultra-violet sanitation

Integrated control and monitoring system

--Automatic operation and in-service monitoring

设备产水范围为0.5-100吨/小时    也可根据客户需求设计制造。

提供完整的IQ/OQ/PQ等文件,设备完全满足GMP/FDA要求。

Equipment specification: 0.5~30tons/h. We can also design to customer’s need.

Providing complete documents including: IQ/OQ/PQ, etc..

The equipments are qualified to GMP and FDA requirements.
