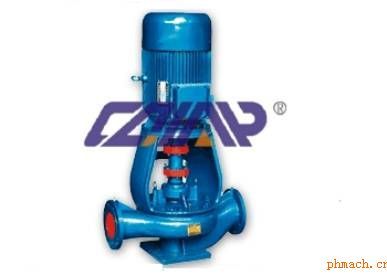

CQMP城泉牌ISGB、IRGB型便拆立式管道离心泵是在ISG基础上开发成功的一种结构新颖、技术先进的泵类产品.该立式泵特别是在整体结构上进行大胆突破设计,采用独立轴承体、泵轴支撑、解决了原来立式泵靠电机加长轴支撑的不足之处;叶轮、泵体采用现代化**水力模型设计制造,消除了原立式泵轴向力大的不足之处;电机采用Y系列标准通用电机,解决原立式泵加长轴电机配套更换难的问题;同时100%的便拆结构解决了更换大功率水泵的轴承,机械密封、叶轮、泵轴的难题.该泵与国内同类产品相比,具有运转更平稳,使用寿命长,配套更方便,维护保养更轻松等无可代替的优点.在立式泵系列产品中属国内首创,各项技术居国内*,是替代ISG型立式泵、IS型离心泵、S型双吸泵等常规离心泵的*理想产品。 |
|
1.立式结构,安装调试方便,独特设计的电机和泵体采用联接体联接,同心度高、加工精度高,占地面积大大减少,缩减了建筑投资.底脚稳固、结构紧凑,精美的铸造和外观处理赋予立式离心泵新的美感,使产品焕发艺术的魅力,可以和国外*厂家立式泵媲美.
2.配用国内*厂家生产的低速Y系列标准通用电机,运行平稳、噪音极低. |
|
3.轴承采用国际*品牌精密轴承,精度高、可靠性好，寿命长.
4.叶轮采用90年代**可自平衡轴向力的水力模型,使得泵轴承和机械密封使用寿命大大延长.
5.电机轴承座内的轴承都配有加油孔和放油孔,对轴承的维护保养*方便.
6.可拆卸爪型弹性联轴器,使泵起动无振动、无噪音,旋转部件设有可靠的安全防护罩,安全性极好.
7.机械密封采用不锈钢、碳化钨、氟橡胶等材料制成,耐高温、高压、运行寿命长,无渗漏,对轴无磨损,保证工作环境整洁.
8.泵盖结构设计独特,只要卸下爪型弹性联轴器、泵盖螺母,即可*轻便取出轴承座、泵盖、泵轴、叶轮等组合件,进行更换机械密封和叶轮,而不必拆卸电机、泵体和管道,维修方便快捷. |
|
|
◆ 型号意义: |
|
 |
|
◆ 使用范围: |
|
1、ISGB立式离心泵，供输送清水及物理性质似清水的其它液体之用，使用介质温度不超过80℃，适用于工
业和城市给排水、高层建筑增压送水、园林喷灌、消防增压、远距离送水、采暖、浴室等冷暖水循 环
增压及设备配套等。
2、IRGB立式热水循环泵，适用于能源、冶金、木材加工、化工、纺织、造纸及饭店、浴室、宾馆等锅炉热
水增压循环输送及城市采暖系统循环用泵，使用介质温度不超过120℃。
3、IHGB立式化工泵，适用于轻纺、石油、化工、医药、卫生、食品、炼油等工业输送化学腐蚀性液体，
介质温度为-20℃～+120℃。
4、YGB立式管道油泵供输送汽油、煤油、柴油等石油产品，被输送介质温度为-20℃～+120℃。 |
|
|
◆ 结构说明: |
|
|
|
1 |
泵体 |
6 |
防气阀 |
|
2 |
叶轮螺母 |
7 |
泵盖 |
|
3 |
叶轮 |
8 |
轴 |
|
4 |
机械密封 |
9 |
电机 |
|
5 |
挡水圈 |
|
|
 |
|
|
◆ 性能参数: |
|
型 号 |
流 量Q |
扬程
m |
效率
% |
转速
r/min |
电机功率
KW |
允许汽蚀余量
m |
|
m3/h |
l/s |
|
40-100 |
6.3 |
1.75 |
12.5 |
54 |
2900 |
0.55 |
2.3 |
|
40100A |
5.6 |
1.56 |
10 |
52 |
2900 |
0.37 |
2.3 |
|
40-125 |
6.3 |
1.75 |
20 |
46 |
2900 |
1.1 |
2.3 |
|
40-125A |
5.6 |
1.56 |
16 |
45 |
2900 |
0.75 |
2.3 |
|
40-160 |
6.3 |
1.75 |
32 |
40 |
2900 |
2.2 |
2.3 |
|
40-160A |
5.9 |
1.64 |
28 |
39 |
2900 |
1.5 |
2.3 |
|
40-160B |
5.5 |
1.53 |
24 |
38 |
2900 |
1.1 |
2.3 |
|
40-200 |
6.3 |
1.75 |
50 |
33 |
2900 |
4 |
2.3 |
|
40-200A |
5.9 |
1.64 |
44 |
31 |
2900 |
3 |
2.3 |
|
40-200B |
5.3 |
1.47 |
36 |
29 |
2900 |
2.2 |
2.3 |
|
40-250 |
6.3 |
1.75 |
80 |
28 |
2900 |
7.5 |
2.3 |
|
40-250A |
5.9 |
1.64 |
70 |
28 |
2900 |
5.5 |
2.3 |
|
40-250B |
5.5 |
1.53 |
60 |
27 |
2900 |
4 |
2.3 |
|
40-100(I) |
12.5 |
3.47 |
12.5 |
62 |
2900 |
1.1 |
2.3 |
|
40-100(I)A |
11 |
3.05 |
10 |
60 |
2900 |
0.75 |
2.3 |
|
40-125(I) |
12.5 |
3.47 |
20 |
58 |
2900 |
1.5 |
2.3 |
|
40-125(I)A |
11 |
3.05 |
16 |
57 |
2900 |
1.1 |
2.3 |
|
40-160(I) |
12.5 |
3.47 |
32 |
52 |
2900 |
3 |
2.3 |
|
40-160(I)A |
11.7 |
3.25 |
28 |
51 |
2900 |
2.2 |
2.3 |
|
40-160(I)B |
10.4 |
2.89 |
22 |
50 |
2900 |
1.5 |
2.3 |
|
40-200(I) |
12.5 |
3.47 |
50 |
46 |
2900 |
5.5 |
2.3 |
|
40-200(I)A |
11.7 |
3.25 |
44 |
45 |
2900 |
4 |
2.3 |
|
40-200(I)B |
10.6 |
2.94 |
36 |
44 |
2900 |
3 |
2.3 |
|
40-250(I) |
12.5 |
3.47 |
80 |
38 |
2900 |
11 |
2.3 |
|
40-250(I)A |
11.6 |
3.22 |
70 |
38 |
2900 |
7.5 |
2.3 |
|
40-250(I)B |
10.8 |
3.0 |
60 |
37 |
2900 |
7.5 |
2.3 |
|
40-250(I)C |
10.0 |
2.78 |
52 |
36 |
2900 |
5.5 |
2.3 |
|
50-100 |
12.5 |
3.47 |
12.5 |
62 |
2900 |
1.1 |
2.3 |
|
50-100A |
11 |
3.05 |
10 |
60 |
2900 |
0.75 |
2.3 |
|
50-125 |
12.5 |
3.47 |
20 |
58 |
2900 |
1.5 |
2.3 |
|
|
型 号 |
流 量Q |
扬程
m |
效率
% |
转速
r/min |
电机功率
KW |
允许汽蚀余量
m |
|
m3/h |
l/s |
|
50-125A |
11 |
3.05 |
16 |
57 |
2900 |
1.1 |
2.3 |
|
50-160 |
12.5 |
3.47 |
32 |
52 |
2900 |
3 |
2.3 |
|
50-160A |
11.7 |
3.25 |
28 |
51 |
2900 |
2.2 |
2.3 |
|
50-160B |
10.4 |
2.89 |
22 |
50 |
2900 |
1.5 |
2.3 |
|
50-200 |
12.5 |
3.47 |
50 |
46 |
2900 |
5.5 |
2.3 |
|
50-200A |
11.7 |
3.25 |
44 |
45 |
2900 |
4 |
2.3 |
|
50-200B |
10.6 |
2.94 |
36 |
44 |
2900 |
3 |
2.3 |
|
50-250 |
12.5 |
3.47 |
80 |
38 |
2900 |
11 |
2.3 |
|
50-250A |
11.6 |
3.22 |
70 |
38 |
2900 |
7.5 |
2.3 |
|
50-250B |
10.8 |
3.0 |
60 |
37 |
2900 |
7.5 |
2.3 |
|
50-250C |
10.0 |
2.78 |
52 |
36 |
2900 |
5.5 |
2.3 |
|
50-100(I) |
25 |
6.94 |
12.5 |
69 |
2900 |
1.5 |
2.5 |
|
50-100(I)A |
22.3 |
6.19 |
10 |
67 |
2900 |
1.1 |
2.5 |
|
50-125(I) |
25 |
6.94 |
20 |
68 |
2900 |
3 |
2.5 |
|
50-125(I)A |
22.3 |
6.19 |
16 |
66 |
2900 |
2.2 |
2.5 |
|
50-160(I) |
25 |
6.94 |
32 |
63 |
2900 |
4 |
2.5 |
|
50-160(I)A |
23.4 |
6.5 |
28 |
62 |
2900 |
4 |
2.5 |
|
50-160(I)B |
21.6 |
6.0 |
24 |
58 |
2900 |
3 |
2.5 |
|
50-200(I) |
25 |
6.94 |
50 |
58 |
2900 |
7.5 |
2.5 |
|
50-200(I)A |
23.5 |
6.53 |
44 |
57 |
2900 |
7.5 |
2.5 |
|
50-200(I)B |
21.8 |
6.06 |
38 |
55 |
2900 |
5.5 |
2.5 |
|
50-250(I) |
25 |
6.94 |
80 |
50 |
2900 |
15 |
2.5 |
|
50-250(I)A |
23.4 |
6.5 |
70 |
50 |
2900 |
11 |
2.5 |
|
50-250(I)B |
21.6 |
6.0 |
60 |
49 |
2900 |
11 |
2.5 |
|
50-315(I) |
25 |
6.94 |
125 |
40 |
2900 |
30 |
2.5 |
|
50-315(I)A |
23.7 |
6.58 |
113 |
40 |
2900 |
22 |
2.5 |
|
50-315(I)B |
22.5 |
6.25 |
101 |
39 |
2900 |
18.5 |
2.5 |
|
50-315(I)C |
20.6 |
5.72 |
85 |
38 |
2900 |
15 |
2.5 |
|
65-100 |
25 |
6.94 |
12.5 |
69 |
2900 |
1.5 |
2.5 |
|
65-100A |
22.3 |
6.19 |
10 |
67 |
2900 |
1.1 |
2.5 |
|
65-125 |
25 |
6.94 |
20 |
68 |
2900 |
3 |
2.5 |
|
65-125A |
22.3 |
6.19 |
16 |
66 |
2900 |
2.2 |
2.5 |
|
65-160 |
25 |
6.94 |
32 |
63 |
2900 |
4 |
2.5 |
|
65-160A |
23.4 |
6.5 |
28 |
62 |
2900 |
4 |
2.5 |
|
65-160B |
21.6 |
6.0 |
24 |
58 |
2900 |
3 |
2.5 |
|
65-200 |
25 |
6.94 |
50 |
58 |
2900 |
7.5 |
2.5 |
|
65-200A |
23.5 |
6.53 |
44 |
57 |
2900 |
7.5 |
2.5 |
|
65-200B |
21.8 |
6.06 |
38 |
55 |
2900 |
5.5 |
2.5 |
|
65-250 |
25 |
6.94 |
80 |
50 |
2900 |
15 |
2.5 |
|
65-250A |
23.4 |
6.5 |
70 |
50 |
2900 |
11 |
2.5 |
|
65-250B |
21.6 |
6.0 |
60 |
49 |
2900 |
11 |
2.5 |
|
65-315 |
25 |
6.94 |
125 |
40 |
2900 |
30 |
2.5 |
|
65-315A |
23.7 |
6.58 |
113 |
40 |
2900 |
22 |
2.5 |
|
65-315B |
22.5 |
6.25 |
101 |
39 |
2900 |
18.5 |
2.5 |
|
65-315C |
20.6 |
5.72 |
85 |
38 |
2900 |
15 |
2.5 |
|
65-100(I) |
50 |
13.9 |
12.5 |
73 |
2900 |
3 |
3.0 |
|
65-100(I)A |
44.7 |
12.4 |
10 |
72 |
2900 |
2.2 |
3.0 |
|
65-125(I) |
50 |
13.9 |
20 |
72.5 |
2900 |
5.5 |
3.0 |
|
|
型 号 |
流 量Q |
扬程
m |
效率
% |
转速
r/min |
电机功率
KW |
允许汽蚀余量
m |
|
m3/h |
l/s |
|
65-125(I)A |
45 |
12.5 |
16 |
71 |
2900 |
4 |
3.0 |
|
65-160(I) |
50 |
13.9 |
32 |
71 |
2900 |
7.5 |
3.0 |
|
65-160(I)A |
46.7 |
13.0 |
28 |
70 |
2900 |
7.5 |
3.0 |
|
65-160(I)B |
43.3 |
12.0 |
24 |
69 |
2900 |
5.5 |
3.0 |
|
65-200(I) |
50 |
13.9 |
50 |
67 |
2900 |
15 |
3.0 |
|
65-200(I)A |
47 |
13.1 |
44 |
66 |
2900 |
11 |
3.0 |
|
65-200(I)B |
43.5 |
12.1 |
38 |
65 |
2900 |
7.5 |
3.0 |
|
65-250(I) |
50 |
13.9 |
80 |
59 |
2900 |
22 |
3.0 |
|
65-250(I)A |
46.7 |
13.0 |
70 |
59 |
2900 |
18.5 |
3.0 |
|
65-250(I)B |
43.3 |
12.0 |
60 |
58 |
2900 |
15 |
3.0 |
|
65-315(I) |
50 |
13.9 |
125 |
54 |
2900 |
37 |
3.0 |
|
65-315(I)A |
46.5 |
12.9 |
110 |
54 |
2900 |
30 |
3.0 |
|
65-315(I)B |
44.5 |
12.4 |
100 |
53 |
2900 |
30 |
3.0 |
|
65-315(I)C |
41 |
11.4 |
85 |
51 |
2900 |
22 |
3.0 |
|
80-100 |
50 |
13.9 |
12.5 |
73 |
2900 |
3 |
3.0 |
|
80-100A |
44.7 |
12.5 |
10 |
72 |
2900 |
2.2 |
3.0 |
|
80-125 |
50 |
13.9 |
20 |
72.5 |
2900 |
5.5 |
3.0 |
|
80-125A |
45 |
12.5 |
16 |
71 |
2900 |
4 |
3.0 |
|
80-160 |
50 |
13.9 |
32 |
71 |
2900 |
7.5 |
3.0 |
|
80-160A |
46.7 |
13.0 |
28 |
70 |
2900 |
7.5 |
3.0 |
|
80-160B |
43.3 |
12.0 |
24 |
69 |
2900 |
5.5 |
3.0 |
|
80-200 |
50 |
13.9 |
50 |
67 |
2900 |
15 |
3.0 |
|
80-200A |
47 |
13.1 |
44 |
66 |
2900 |
11 |
3.0 |
|
80-200B |
43.5 |
12.1 |
38 |
65 |
2900 |
7.5 |
3.0 |
|
80-250 |
50 |
13.9 |
80 |
59 |
2900 |
22 |
3.0 |
|
80-250A |
46.7 |
13.0 |
70 |
59 |
2900 |
18.5 |
3.0 |
|
80-250B |
43.3 |
12.0 |
60 |
58 |
2900 |
15 |
3.0 |
|
80-315 |
50 |
13.9 |
125 |
54 |
2900 |
37 |
3.0 |
|
80-315A |
46.5 |
12.9 |
110 |
54 |
2900 |
30 |
3.0 |
|
80-315B |
44.5 |
12.4 |
100 |
53 |
2900 |
30 |
3.0 |
|
80-315C |
41 |
11.4 |
85 |
51 |
2900 |
22 |
3.0 |
|
80-350 |
50 |
13.9 |
150 |
66 |
2900 |
55 |
3.0 |
|
80-350A |
44.5 |
12.4 |
142 |
65 |
2900 |
45 |
3.0 |
|
80-350B ,
41 |
11.4 |
135 |
62 |
2900 |
37 |
3.0 |
|
80-100(I) |
100 |
27.8 |
12.5 |
76 |
2900 |
5.5 |
4.5 |
|
80-100(I)A |
89 |
24.7 |
10 |
74 |
2900 |
4 |
4.5 |
|
80-125(I) |
100 |
27.8 |
20 |
76 |
2900 |
11 |
4.5 |
|
80-125(I)A |
89 |
24.7 |
16 |
74 |
2900 |
7.5 |
4.5 |
|
80-160(I) |
100 |
27.8 |
32 |
76 |
2900 |
15 |
4.5 |
|
80-160(I)A |
93.5 |
26.0 |
28 |
74 |
2900 |
11 |
4.5 |
|
80-160(I)B |
86.6 |
24.1 |
24 |
72 |
2900 |
11 |
4.5 |
|
80-200(I) |
100 |
27.8 |
50 |
74 |
2900 |
2 |
4.5 |
|
80-200(I)A |
93.5 |
26.0 |
44 |
73 |
2900 |
18.5 |
4.5 |
|
80-200(I)B |
87 |
24.2 |
38 |
71 |
2900 |
15 |
4.5 |
|
80-250(I) |
100 |
27.8 |
80 |
69 |
2900 |
37 |
4.5 |
|
80-250(I)A |
93.5 |
26.0 |
70 |
68 |
2900 |
30 |
4.5 |
|
80-250(I)B |
87 |
24.2 |
60 |
66 |
2900 |
30 |
4.5 |
|
80-315(I) |
100 |
27.8 |
125 |
66 |
2900 |
75 |
4.5 |
|
|
型 号 |
流 量Q |
扬程
m |
效率
% |
转速
r/min |
电机功率
KW |
允许汽蚀余量
m |
|
m3/h |
l/s |
|
80-315(I)A |
95 |
26.4 |
113 |
66 |
2900 |
55 |
4.0 |
|
80-315(I)B |
90 |
25 |
101 |
65 |
2900 |
45 |
4.0 |
|
80-315(I)C |
82 |
22.8 |
85 |
63 |
2900 |
37 |
4.0 |
|
100-100 |
100 |
27.8 |
12.5 |
76 |
2900 |
5.5 |
4.5 |
|
100-100A |
89 |
47 |
10 |
74 |
2900 |
4 |
4.5 |
|
100-125 |
100 |
27.8 |
20 |
76 |
2900 |
11 |
4.5 |
|
100-125A |
89 |
24.7 |
16 |
74 |
2900 |
7.5 |
4.5 |
|
100-160 |
100 |
27.8 |
32 |
76 |
2900 |
15 |
4.5 |
|
100-160A |
93.5 |
26.0 |
28 |
74 |
2900 |
11 |
4.5 |
|
100-160B |
86.6 |
24.1 |
24 |
72 |
2900 |
11 |
4.5 |
|
100-200 |
100 |
27.8 |
50 |
74 |
2900 |
22 |
4.0 |
|
100-200A |
93.5 |
26.0 |
44 |
73 |
2900 |
18.5 |
4.0 |
|
100-200B |
87 |
24.2 |
38 |
71 |
2900 |
15 |
4.0 |
|
100-250 |
100 |
27.8 |
80 |
69 |
2900 |
37 |
4.0 |
|
100-250A |
93.5 |
26.0 |
70 |
68 |
2900 |
30 |
4.0 |
|
100-250B |
87 |
24.2 |
60 |
66 |
2900 |
30 |
4.0 |
|
100-315 |
100 |
27.8 |
125 |
66 |
2900 |
75 |
4.0 |
|
100-315A |
95 |
26.4 |
113 |
66 |
2900 |
55 |
4.0 |
|
100-315B |
90 |
25 |
101 |
65 |
2900 |
45 |
4.0 |
|
100-315C |
82 |
22.8 |
85 |
63 |
2900 |
37 |
4.0 |
|
100-100(I) |
160 |
44.4 |
12.5 |
73 |
2900 |
11 |
4.5 |
|
100-125(I) |
160 |
44.4 |
20 |
74 |
2900 |
15 |
4.5 |
|
100-125(I)A |
140 |
39 |
17 |
72 |
2900 |
11 |
4.5 |
|
100-160(I) |
160 |
44.4 |
32 |
32 |
2900 |
22 |
5.6 |
|
100-160(I)A |
140 |
39 |
28 |
28 |
2900 |
18.5 |
5.0 |
|
100-200(I) |
100 |
44.4 |
50 |
50 |
2900 |
37 |
5.2 |
|
100-200(I)A |
140 |
39 |
45 |
45 |
2900 |
30 |
4.5 |
|
100-200(I)B |
100 |
27.8 |
40 |
40 |
2900 |
22 |
4.5 |
|
100-250(I) |
160 |
44.4 |
80 |
80 |
2900 |
55 |
4.8 |
|
100-250(I)A |
140 |
39 |
72 |
72 |
2900 |
45 |
4.5 |
|
100-250(I)B |
100 |
27.8 |
65 |
65 |
2900 |
37 |
4.5 |
|
100-350 |
100 |
27.8 |
150 |
150 |
2900 |
90 |
4.0 |
|
100-350A |
87 |
24.2 |
142 |
142 |
2900 |
75 |
4.0 |
|
100-350B |
82 |
22.8 |
135 |
135 |
2900 |
55 |
4.0 |
|
125-100 |
160 |
44.4 |
12.5 |
12.5 |
2900 |
11 |
4.0 |
|
125-100A |
143 |
39.7 |
10 |
10 |
2900 |
7.5 |
4.0 |
|
125-125 |
160 |
44.4 |
20 |
20 |
2900 |
15 |
4.0 |
|
125-125A |
143 |
39.7 |
16 |
16 |
2900 |
11 |
4.0 |
|
125-160 |
160 |
44.4 |
32 |
32 |
2900 |
22 |
4.0 |
|
125-160A |
150 |
41.7 |
28 |
28 |
2900 |
18.5 |
4.0 |
|
125-160B |
138 |
38.3 |
24 |
24 |
2900 |
15 |
4.0 |
|
125-200 |
160 |
44.4 |
50 |
50 |
2900 |
37 |
5.5 |
|
125-200A |
150 |
41.7 |
44 |
44 |
2900 |
30 |
5.5 |
|
125-200B |
138 |
38.3 |
37.5 |
37.5 |
2900 |
22 |
5.5 |
|
125-250 |
160 |
44.4 |
80 |
80 |
2900 |
55 |
5.0 |
|
125-250A |
150 |
41.7 |
70 |
70 |
2900 |
45 |
5.5 | | | |
苏公网安备32041102001157号
