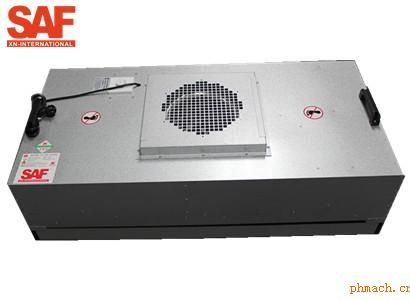

FFU系列风机过滤器单元

Head fan filter unit series

 310风机FFU过滤器特点Features

●运行成本低、使用方便

●独特的低振动、低噪音

●风速均匀、风机可调

●风机箱和过滤器分体，更换拆卸方便

●Low operating cost, convenient use

●The unique low vibration, low noise

●Adjustable speed, fan

●Fan box and filter fission, easy replacement

 310风机FFU过滤器产品介绍  Product introduction

本公司生产的FFU系列风机过滤器单元是采用国内*新技术，适用于在100000-1000级环境中获得*高100级的洁净环境，它为不同尺寸大小、不同洁净度等级的洁净室、微环境提供高质量的洁净空气。广泛应用于洁净室、洁净工作台、洁净生产线、组装式洁净室和层流罩等应用场合。高科技、人性化的计算机软件系统，可以通过一台单独的中央计算机监控系统，对多达7905台的FFU进行监控，同时也可以根据顾客要求来设计额外的监控系统。特别适合于组装成超净生产线，可根据工艺需要布置为单台使用，也可将多台串联形成100级流水装配线

This company produces the head fan filter unit is the series of domestic newest technology, suitable for 100,000-1000 magnitude environment and obtain the highest grade of  clean environment.100, it is different for different size, cleanliness level of cleanroom microenvironment, provide high quality and clean air. Widely applied in cleanrooms, clean bench, clean production, the assembly type clean room and laminar covers and other applications High-tech and humanization of computer software system, can a single central computer monitoring system, the head of 7905 up, also can design according to customer requirements for additional monitoring system. Particularly suited to assemble line, can according to the super net technology for single use to decorate, also can be formed many series 100 level assembly line

 310风机FFU过滤器构成材料及技术参数Constitute the material and technical parameter

●框材：、覆铝锌板、冷板喷塑、不锈钢

●External frane：Stainless steel or cooling-plate pensu

●风机：310铝合金叶轮国产风机

●Fan: 310  AL-centrifugul  domestic  fan

●风速：0.4-0.8m/s

●Winds: 0.4-0.8 m/s

●净化*高级别：100级

●Purification at the highest level: 100 levels

●高效滤芯：国产玻纤滤纸或HV滤纸

●Efficient filter: domestic glass fiber filter proposed.and or filter

●系统控制模式：交流控制和直流控制

●System control mode: exchange control and direct control

●使用*高温度、湿度：80℃、80%

●Use the highest temperature, humidity：80℃、80%

 310风机FFU过滤器型号尺寸及其他参数（Standard specification）

*可要据用户要求定制不同规格型号的FFU风机过滤器单元

According to user requirements to customize different specifications and types of head fan filter unit
