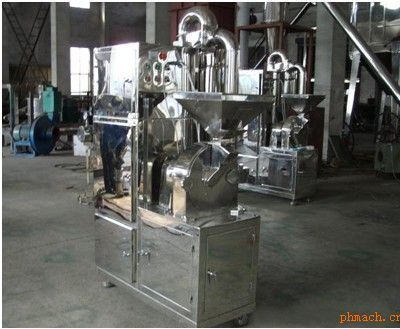

ZFJ-20B中草药粉碎机组 |
关键词:粉碎机 中草药粉碎机 草药粉碎机 粉碎机价格 |
|
|
公司名称:江苏省江阴市普友粉体设备有限公司 |
详细说明 |
主要用途: Main Application 该机组适用于制药、食品、化工等行业。具有风冷、无筛网等多种性能,它不受物料粘度、软硬度及纤维等限制,对任何物料都能起到较好的粉碎效果。特别适用于粉碎带纤维的中药材、带一定油性的物料。 The machine is applied in industries such as pharmaceutics, foodstuff, chemicals and etc, with features of cool air and no sieve or screen. It is not limited by the viscosity, hardness, softness or fiber shape of the raw materials, and has good effect to all materials, especially to those Chinese herbal medicines with fibers and those with oils.
工作原理: Working Method 该机由加料斗,分级轮,粉碎刀片,齿圈,粉碎电机,出料口,风叶,集料箱,吸尘箱等部分组成,物料由加料斗进入粉碎室,通过高速旋转的刀片进行粉碎,调节分级轮与分级盘的距离来达到所要求的物料细度,高速旋转的风叶把达到要求的物料从粉碎室通过负压风引到下料器中,没有达到要求的物料继续在粉碎室中粉碎,粉尘经布袋或滤筒过滤回收,该机组按GMP标准设计,结构简单,操作清理方便,噪音小,产量高,设备采用不锈钢材料制作,粉碎过程中无粉尘飞扬。 The machine is composed of feeder, grading wheel, pulverizing blades, gears, pulverizing motor, discharging gate, fans, collection box, dust collection box and etc. Any raw material, being feed into the grind chamber through the upper feeder, is pulverized by high-speed running blades. The fineness of the finished products is regulated via the distance adjustment of grading wheel and grading plate. The high-speed running fans will lead those pulverized material from grinding chamber to discharge gate via negative pressure while whose unpulverized remained in the chamber. The dust from grinding is filtered and recycled via the cloth bag or filter of the dust absorption box. The whole machine, designed according to GMP standard, is made of stainless steel, with the features of easy structure, convenient operation and cleaning, low noise and high capacity, avoiding dust flying in production.
操作及注意事项: 1、使用前,先检查机器所有紧固件是否拧紧,皮带是否张紧。
|
|
